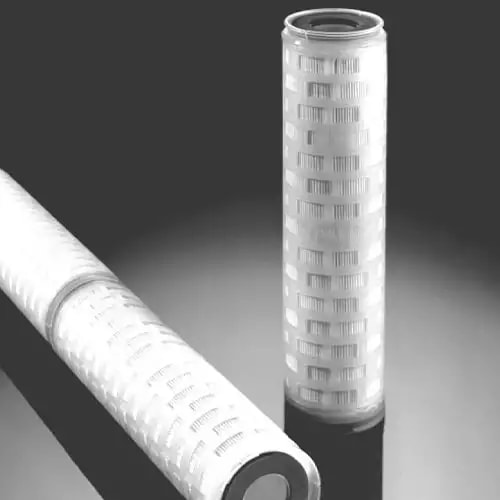

Epocel® Filter Cartridges MCY1001EEH13

$65.48
Part Number
  • MCY1001EEH13
Highlights...

Features

  • Media Material: resin impregnated cellulose
  • Hardware Material: polypropylene
  • O-ring/Seal/Gasket Material: Nitrile
  • Removal Rating: 10µm
  • Removal Efficiency: absolute
  • Nominal Outer Diameter: 2 3/4 in 70mm
  • Nominal Length: 10 in 254 mm
  • Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
  • Maximum Temperature: 60°C (140°F)
  • Dirt Holding Capacity: 0
  • Clean Differential Pressure: 0.17 bar (2 psid)
The MCY1001EEH13 is a high-efficiency Epocel filter with epoxy-impregnated cellulose media and an absolute rating of 1 µm. Designed for critical industrial applications, this filter provides consistent and reliable particulate retention, ensuring product quality and protecting downstream equipment. It features a Buna-N gasket for broad compatibility and a robust design for stable performance under pressure.
