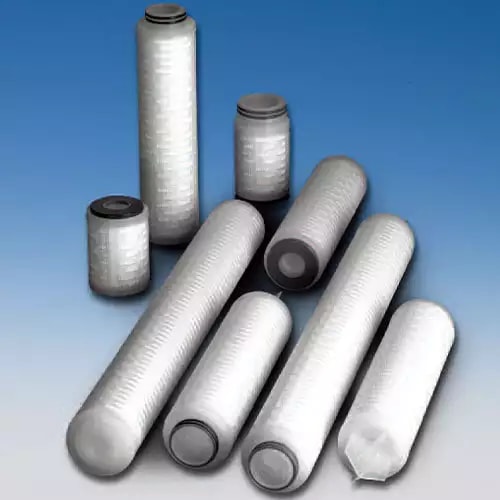

Poly-Fine® II Filter Cartridges QMPT100300UVM3
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Fluorocarbon elastomer
- Removal Rating: 10µm
- Removal Efficiency: Nominal
- Nominal Outer Diameter: 2.5 in 64 mm
- Nominal Length: 30 in 762 mm
- Configuration (SOE/DOE/Code7/Code3): M3 - SOE flat closed end, external 222 O-rings (retrofits other manufacturers’ Code 0)2M3
- Maximum Differential Pressure: 2.4 bard
- Dirt Holding Capacity: 0
- Clean Differential Pressure: 0.17 bar (2 psid)
Description
The QMPT100300UVM3 is a 30-inch Quantum P Series filter cartridge with a 10 µm removal rating. This melt-blown polypropylene filter is designed to provide excellent particle removal efficiency and exceptional dirt holding capacity. It features an SOE flat closed end with external 222 O-rings (M3 configuration) and a fluorocarbon elastomer gasket for a secure seal and excellent chemical compatibility.
