Poly-Fine® II Filter Cartridge, PFT530USM7W480
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Silicone Elastomer
- Removal Rating: 5 µm
- Nominal Outer Diameter: 2.6 in
- Nominal Length: 762 mm (30 in)
- Configuration (SOE/DOE/Code7/Code3): SOE – single open end with fin end, 2 locking tabs, and external 226 O-rings
- Maximum Differential Pressure: 4.8 bard (70 psid) @ 20°C (68°F)
- Hot Water Sanitization: 82°C (180°F) @ 1 bar (15 psig)
- Integrity Testable: No bubble test
- Product Use: Pre-Filtration
Description

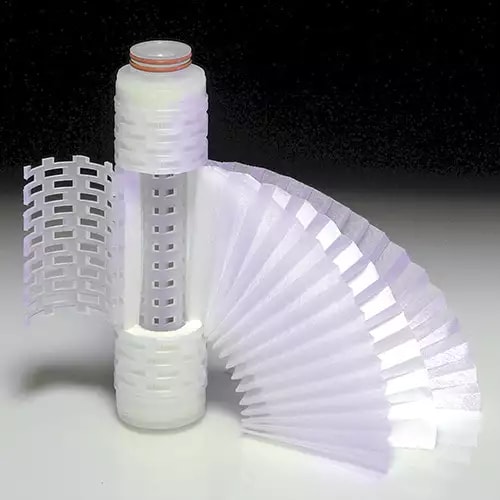

Increase capacity and hold pressure loss down. The PFT530USM7W480 uses a pleated depth matrix to deliver 5 µm retention with high surface area for longer on-stream life. All polypropylene construction provides broad chemical compatibility and low extractables. A single open end (SOE) fin end with external 226 O-rings and silicone sealing creates a tight, repeatable seat in compatible housings for leak-free operation. Elements are produced under ISO 9001 quality systems and can be hot-water sanitized between campaigns. Choose this 30-inch format to reduce changeouts, stabilize clarity, and protect downstream equipment in beverage, utility water, and general industrial processes.
