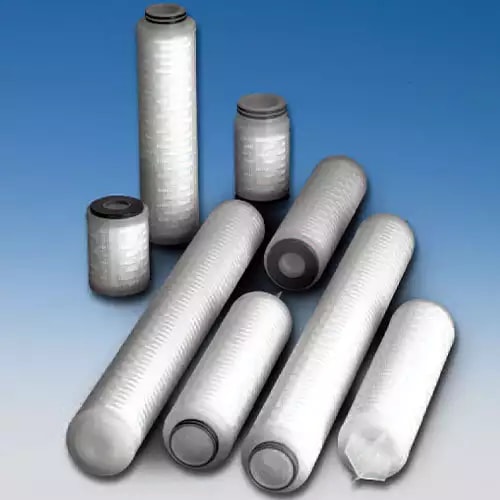

Poly-Fine® II Filter Cartridges PFT530USM7
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Silicone
- Removal Rating: 5µm
- Removal Efficiency: Nominal
- Nominal Outer Diameter: 2.6 in 66 mm
- Nominal Length: 30 in 762 mm
- Configuration (SOE/DOE/Code7/Code3): SOE fin end, external 226 O-rings (retrofits other manufacturers’ Code 7)3M7
- Maximum Differential Pressure: 2.4 bard
- Dirt Holding Capacity: 0
- Clean Differential Pressure: 0.17 bar (2 psid)
- Product Use: Pre-Filtration
Description
The PFT530USM7 is a 30-inch, 5 µm filter cartridge featuring an SOE fin end configuration (M7) with external 226 O-rings that retrofit other manufacturers' housings. It is a one-piece all-polypropylene unit with a silicone elastomer gasket for a reliable seal. This filter provides consistent performance and high contaminant-holding capacity for general use filtration.
