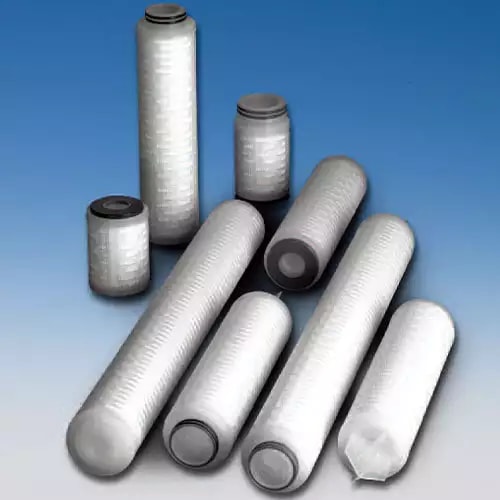

Poly-Fine® II Filter Cartridges PFT530USM8
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Silicone
- Removal Rating: 5µm
- Removal Efficiency: Nominal
- Nominal Outer Diameter: 2.6 in 66 mm
- Nominal Length: 30 in 762 mm
- Configuration (SOE/DOE/Code7/Code3): SOE fin end, external 222 O-rings (retrofits other manufacturers’ Code 5)3M8
- Maximum Differential Pressure: 2.4 bard
- Dirt Holding Capacity: 0
- Clean Differential Pressure: 0.17 bar (2 psid)
- Product Use: Pre-Filtration
Description
The PFT530USM8 is a 30-inch Poly-Fine II filter cartridge with a 5 µm removal rating. This all-polypropylene body is free of adhesives, ensuring high purity. It features an M8 end configuration with a fin end and external 222 O-rings, combined with a silicone elastomer gasket for a secure seal and wide chemical compatibility.
