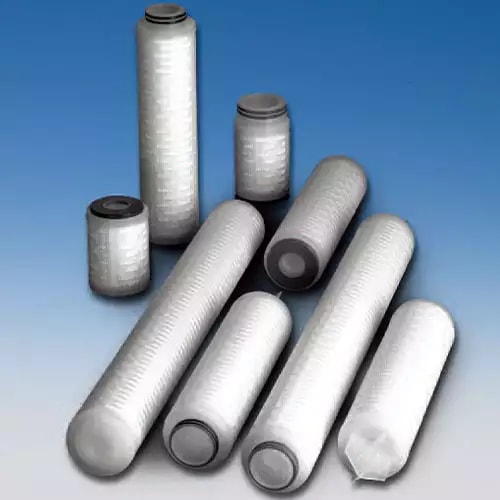

Poly-Fine® II Filter Cartridges PFT3010UEM3
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: EPDM
- Removal Rating: 30µm
- Removal Efficiency: Nominal
- Nominal Outer Diameter: 2.6 in 66 mm
- Nominal Length: 10 in 254 mm
- Configuration (SOE/DOE/Code7/Code3): SOE flat closed end, external 222 O-rings (retrofits other manufacturers’ Code 0)3M3
- Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
- Maximum Temperature: 60°C (140°F)
- Dirt Holding Capacity: 0
- Clean Differential Pressure: 0.17 bar (2 psid)
- Product Use: Pre-Filtration
Description
This 30 µm Poly-Fine II cartridge provides coarse retention with a sanitary-style SOE flat end for secure, repeatable seating. Pleated polypropylene depth media offers high area and strong contaminant holding to slow differential pressure rise. External 222 O-rings (M3 adaptor) in EPDM ensure a positive seal in compatible housings. The element€™s all-polypropylene, thermally bonded build eliminates binders and resins and supports a clean rinse-up. Typical operating guidance includes a 2.4 bar (35 psid) differential pressure changeout and forward limits of 4.8 bar (70 psid) at 20°C or 2.8 bar (40 psid) at 65°C in compatible fluids. Select it as a guard stage ahead of finer cartridges or membranes.
