$229.38
  • PFT0830UESIW480

Overview

Features

  • Media Material: Polypropylene
  • Hardware Material: Polypropylene
  • O-ring/Seal/Gasket Material: Ethylene Propylene Rubber
  • Removal Rating: 0.8 µm
  • Nominal Outer Diameter: 2.6 in
  • Nominal Length: 762 mm (30 in)
  • Configuration (SOE/DOE/Code7/Code3): SOE – with open end cap/gasket and integral stainless steel spring on flat closed end
  • Maximum Differential Pressure: 4.8 bard (70 psid) @ 20°C (68°F)
  • Filter Area: 0.8 cm²
  • Hot Water Sanitization: 82°C (180°F) @ 1 bar (15 psig)
  • Integrity Testable: No bubble test
  • Product Use: Pre-Filtration

Description

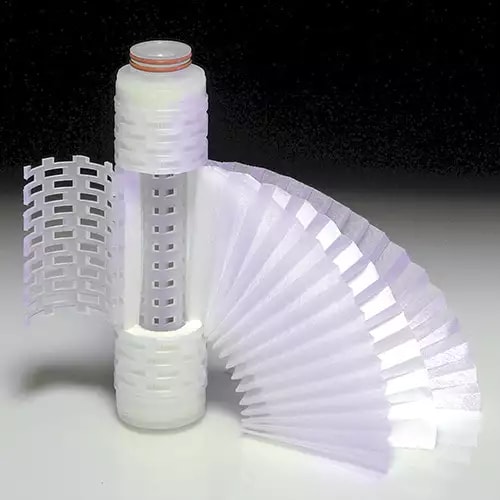

For users who prefer spring-loaded seating, the PFT0830UESIW480 provides 0.8 µm retention in a high-area pleated depth format. The all-polypropylene construction and narrow pore distribution support consistent removal of non-deformable particles, while the large surface area keeps clean pressure drop low and extends run time. This configuration features a single open end with an integral stainless steel spring on the closed end and an EPDM seal, which helps maintain a reliable seal in compatible housings. Manufactured under ISO 9001 quality systems and suitable for hot water sanitization, the element delivers repeatable performance as a prefilter or final clarifier.
