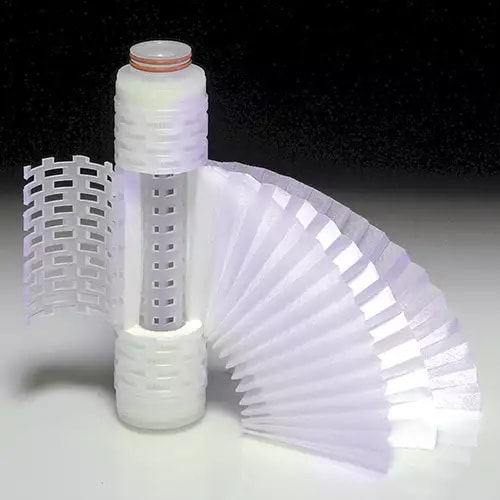

Poly-Fine® II Filter Cartridge, PFT0830UEM7W480
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Ethylene Propylene Rubber
- Removal Rating: 0.8 µm
- Nominal Outer Diameter: 2.6 in
- Nominal Length: 762 mm (30 in)
- Configuration (SOE/DOE/Code7/Code3): SOE – single open end with fin end, 2 locking tabs, and external 226 O-rings
- Maximum Differential Pressure: 4.8 bard (70 psid) @ 20°C (68°F)
- Filter Area: 0.8 cm²
- Hot Water Sanitization: 82°C (180°F) @ 1 bar (15 psig)
- Integrity Testable: No bubble test
- Product Use: Pre-Filtration
Description
The PFT0830UEM7W480 is a 30-inch pleated depth cartridge rated 0.8 µm for robust prefiltration and final clarification of liquids. A high-area, all-polypropylene media pack helps minimize initial pressure drop and extends dirt capacity, while the consistent pore structure supports steady retention. The single open end (SOE) fin end with external 226 O-rings and EPDM sealing ensures a positive seat in compatible housings, streamlining changeouts. Produced in a controlled environment under ISO 9001 quality management, the element offers reproducible performance and hot water sanitization capability between batches.
