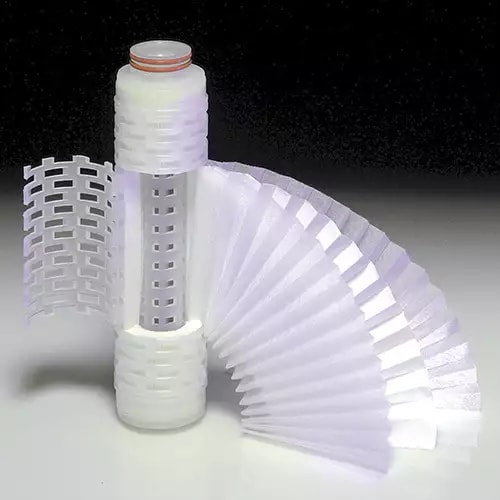

Poly-Fine® II Filter Cartridge, PFT0820UEW480
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Ethylene Propylene Rubber
- Removal Rating: 0.8 µm
- Nominal Outer Diameter: 2.6 in
- Nominal Length: 508 mm (20 in)
- Configuration (SOE/DOE/Code7/Code3): DOE – with open end caps/gasket
- Maximum Differential Pressure: 4.8 bard (70 psid) @ 20°C (68°F)
- Hot Water Sanitization: 82°C (180°F) @ 1 bar (15 psig)
- Integrity Testable: No bubble test
- Product Use: Pre-Filtration
Description
The PFT0820UEW480 offers economical 0.8 µm particle control in a durable, all-polypropylene design suited to industrial housings. Its pleated depth media delivers a large surface area to lower clean pressure drop and increase dirt capacity, which helps extend time between changeouts. This double open-end (DOE) version uses gaskets with EPDM for reliable sealing in common plant fluids. Elements are produced in a controlled environment under ISO 9001 quality systems and can be sanitized with hot water between campaigns.
