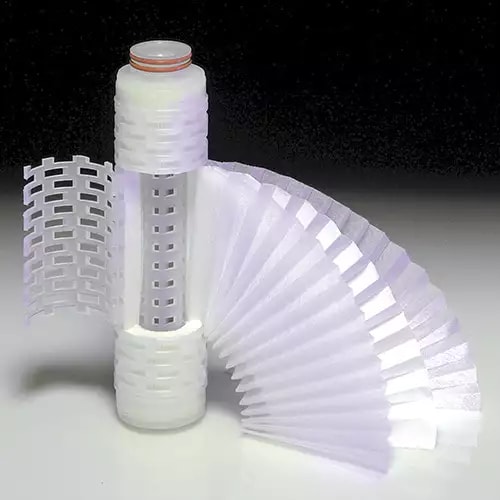

Poly-Fine® II Filter Cartridge, PFT04530USM7W480
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Silicone Elastomer
- Removal Rating: 0.45 µm
- Nominal Outer Diameter: 2.6 in
- Nominal Length: 762 mm (30 in)
- Configuration (SOE/DOE/Code7/Code3): SOE – single open end with fin end, 2 locking tabs, and external 226 O-rings
- Maximum Differential Pressure: 4.8 bard (70 psid) @ 20°C (68°F)
- Hot Water Sanitization: 82°C (180°F) @ 1 bar (15 psig)
- Integrity Testable: No bubble test
- Product Use: Pre-Filtration
Description
Choose the PFT04530USM7W480 when you need stable 0.45 µm retention with fewer changeouts. Its pleated depth media provides high surface area to delay pressure rise and maintain flow, while the all-polypropylene build maximizes fluid compatibility and helps control extractables. A single open end (SOE) fin configuration with external 226 O-rings in silicone enables quick, leak-tight installation in compatible housings. Elements are produced in a controlled environment under ISO 9001 quality standards and can be sanitized with hot water. Recommended changeout at a moderate differential pressure helps preserve media performance.
