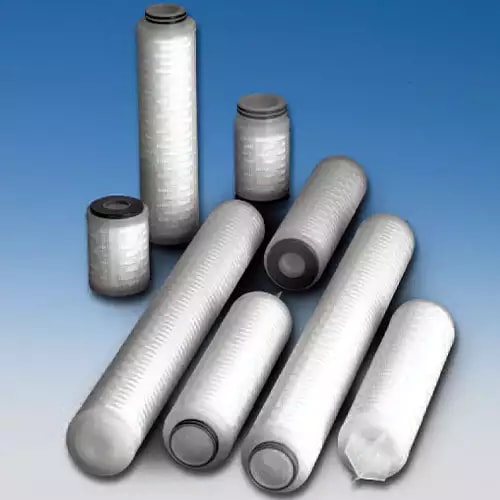

Poly-Fine® II Filter Cartridges PFT04510UVM3
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Fluorocarbon elastomer
- Removal Rating: 0,45µm
- Removal Efficiency: Nominal
- Nominal Outer Diameter: 2.6 in 66 mm
- Nominal Length: 10 in 254 mm
- Configuration (SOE/DOE/Code7/Code3): SOE flat closed end, external 222 O-rings (retrofits other manufacturers’ Code 0)3M3
- Maximum Differential Pressure: 2.4 bard
- Dirt Holding Capacity: 0
- Clean Differential Pressure: 0.17 bar (2 psid)
- Product Use: Pre-Filtration
Description
The PFT04510UVM3 is a high-performance 10-inch Poly-Fine II filter cartridge with a 0.45 µm removal rating. Its M3 end configuration with external 222 O-rings and a fluorocarbon elastomer gasket ensures a secure seal and robust chemical compatibility. The one-piece, all-polypropylene body provides high contaminant holding capacity and consistent performance.
