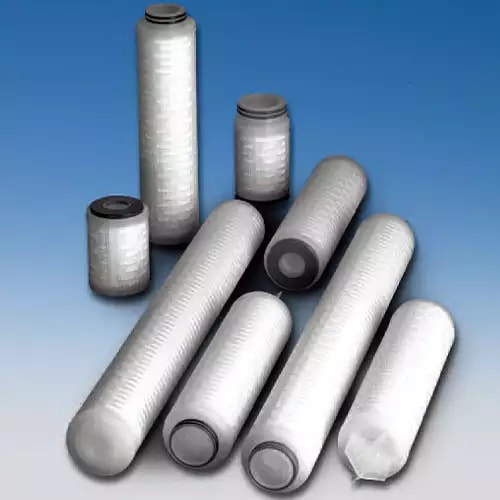

Poly-Fine® II Filter Cartridges PFT04510USM7
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Silicone
- Removal Rating: 0,45µm
- Removal Efficiency: Nominal
- Nominal Outer Diameter: 2.6 in 66 mm
- Nominal Length: 10 in 254 mm
- Configuration (SOE/DOE/Code7/Code3): SOE fin end, external 226 O-rings (retrofits other manufacturers’ Code 7)3M7
- Maximum Differential Pressure: 2.4 bard
- Dirt Holding Capacity: 0
- Clean Differential Pressure: 0.17 bar (2 psid)
- Product Use: Pre-Filtration
Description
The PFT04510USM7 is a 10-inch Poly-Fine II filter cartridge with a 0.45 µm removal rating. It is built with Pall’s proprietary filter media for high contaminant holding capacity and consistent performance. The M7 end configuration with external 226 O-rings and a silicone elastomer gasket allows for seamless retrofitting in housings that require this specific end type.
