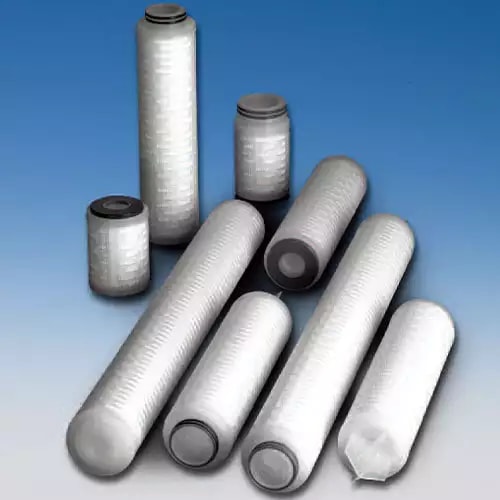

Poly-Fine® II Filter Cartridges PFT02530UTM3
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Expanded PTFE (gaskets) FEP encapsulated silicone (O-rings)T
- Removal Rating: 0,25µm
- Removal Efficiency: Nominal
- Nominal Outer Diameter: 2.6 in 66 mm
- Nominal Length: 30 in 762 mm
- Configuration (SOE/DOE/Code7/Code3): SOE flat closed end, external 222 O-rings (retrofits other manufacturers’ Code 0)3M3
- Maximum Differential Pressure: 2.4 bard
- Dirt Holding Capacity: 0
- Clean Differential Pressure: 0.17 bar (2 psid)
- Product Use: Pre-Filtration
Description
The PFT02530UTM3 is a 30-inch Poly-Fine II filter cartridge featuring a 0.25 µm retention rating. Its all-polypropylene body is free of adhesives for fluid purity. The M3 end configuration with a flat closed end and external 222 O-rings, combined with an FEP encapsulated silicone O-ring, provides a secure seal and broad chemical compatibility in a variety of industrial applications.
