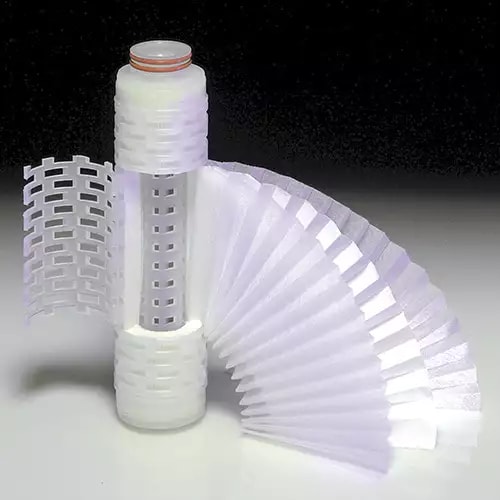

Poly-Fine® II Filter Cartridge, PFT02530UESIW480
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Ethylene Propylene Rubber
- Removal Rating: 0.25 µm
- Nominal Outer Diameter: 2.6 in
- Nominal Length: 762 mm (30 in)
- Configuration (SOE/DOE/Code7/Code3): SOE – with open end cap/gasket and integral stainless steel spring on flat closed end
- Maximum Differential Pressure: 4.8 bard (70 psid) @ 20°C (68°F)
- Filter Area: 0.83 cm²
- Hot Water Sanitization: 82°C (180°F) @ 1 bar (15 psig)
- Integrity Testable: No bubble test
- Product Use: Pre-Filtration
Description
The PFT02530UESIW480 delivers very fine particulate control with a 0.25 µm rating and a high-area pleated depth matrix to maximize service life. Its all-polypropylene construction contains no adhesives, binders, or resins, helping maintain cleanliness across a wide range of liquids. For secure installation, this style uses a single open end with an integral stainless steel spring at the closed end and an EPDM seal, supporting reliable compression and leak-tight starts. Operating guidance includes low clean pressure drop and strong dirt capacity. Cartridges are manufactured in a controlled environment under an ISO 9001 quality system and can be sanitized with hot water between campaigns.
