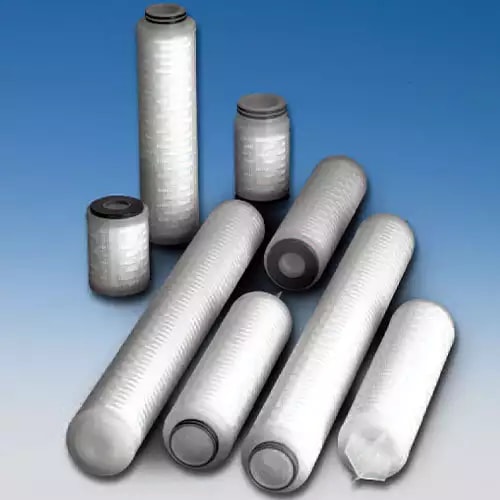

Poly-Fine® II Filter Cartridges PFT02530USM7
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Silicone
- Removal Rating: 0,25µm
- Removal Efficiency: Nominal
- Nominal Outer Diameter: 2.6 in 66 mm
- Nominal Length: 30 in 762 mm
- Configuration (SOE/DOE/Code7/Code3): SOE fin end, external 226 O-rings (retrofits other manufacturers’ Code 7)3M7
- Maximum Differential Pressure: 2.4 bard
- Dirt Holding Capacity: 0
- Clean Differential Pressure: 0.17 bar (2 psid)
- Product Use: Pre-Filtration
Description
The PFT02530USM7 is a 30-inch Poly-Fine II filter cartridge with a 0.25 µm removal rating. It is a one-piece all-polypropylene unit with a silicone elastomer gasket for a reliable seal. Its M7 end configuration with external 226 O-rings allows for seamless retrofitting into housings designed for this standard. This filter offers consistent performance and high contaminant-holding capacity.
