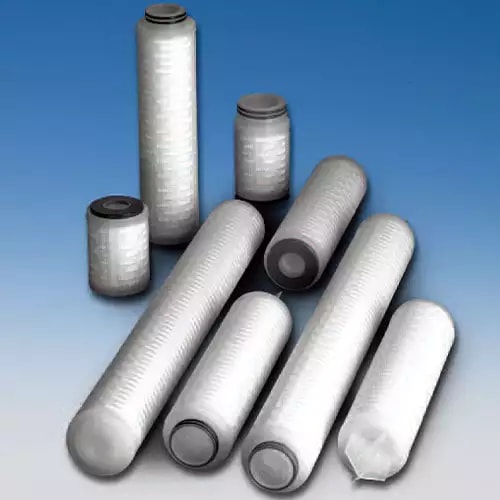

Poly-Fine® II Filter Cartridges PFT0210USM7
Overview
Features
- Media Material: Highly Asymetric Polysulfone
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Silicone
- Removal Rating: 0,2µm
- Removal Efficiency: Nominal
- Nominal Outer Diameter: 2.6 in 66 mm
- Nominal Length: 10 in 254 mm
- Configuration (SOE/DOE/Code7/Code3): SOE fin end, external 226 O-rings (retrofits other manufacturers’ Code 7)3M7
- Maximum Differential Pressure: 2.4 bard
- Dirt Holding Capacity: 0
- Clean Differential Pressure: 0.17 bar (2 psid)
- Product Use: Pre-Filtration
Description
The PFT0210USM7 is a 10-inch, 0.2 µm filter cartridge featuring an asymmetric polysulfone media for excellent particle capture. Its SOE fin end configuration (M7) with external 226 O-rings allows it to retrofit specific housings. The silicone elastomer gasket ensures a dependable seal for a variety of fluids.
