$248.20
  • MCY2230PFRWH4

Overview

Features

  • Media Material: Double Layer PTFE
  • O-ring/Seal/Gasket Material: Silicone Elastomer
  • Removal Rating: 0.2 µm
  • Nominal Length: 3 in
  • Maximum Differential Pressure: 5.3 bard @ < 50° C (122◦ F)
  • Filter Area: 1400 cm²
  • Integrity Testable: 100% bubble test

Description

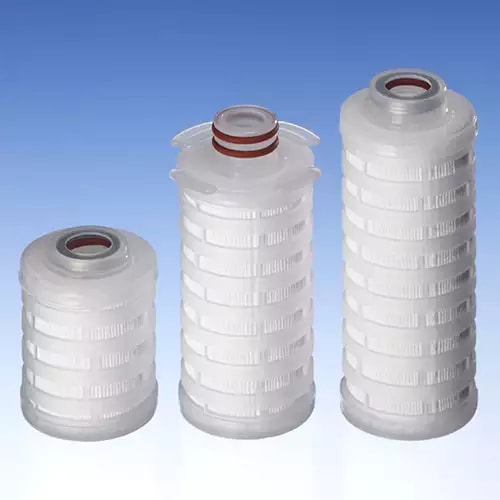

The MCY2230PFRWH4 brings Emflon PFRW membrane performance to a mid-size, 76 mm Junior format for space-constrained installations. A hydrophobic double-layer 0.2 µm PTFE membrane delivers validated bacteria retention with reliable airflow in humid conditions. The pleated pack increases effective area to reduce pressure losses and support fast tank venting. Designed for steam-in-place sterilization and integrity testing with the Water Intrusion Test (WIT), it enables repeatable release and documentation. Silicone O-rings offer a sanitary seal in compatible housings. Need more information? View all details for this Product Family!
