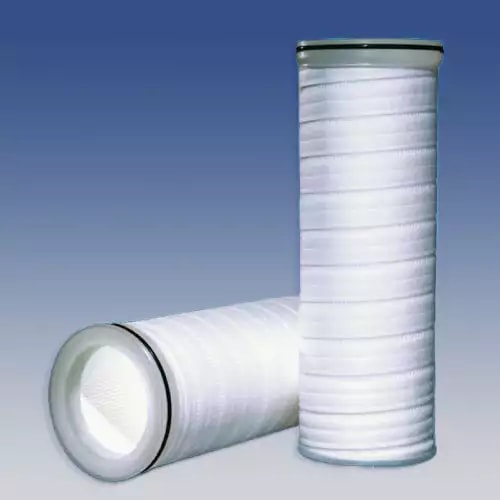

Ultipleat® High Flow Element, HFU660CAS010JUW
Overview
Features
- Media Material: Pleated Polypropylene / PES Membrane
- Hardware Material: Glass Filled Polypropylene
- O-ring/Seal/Gasket Material: Ethylene Propylene Rubber
- Removal Rating: 1 µm
- Removal Efficiency: 1
- Nominal Outer Diameter: 152 mm (6 in)
- Nominal Length: 1524 mm (60”)
- Maximum Differential Pressure: 3.45 bard (50 psid) (inside to out flow) @ 82 °C (180 °F)
Description
The HFU660CAS010JUW is a 60-inch, large-diameter cartridge that offers maximum throughput for high-flow food and beverage applications. It features a pleated composite membrane of polypropylene and polyethersulfone (PES) with a 1 µm absolute removal rating for consistent, high-purity filtration. Its inside-to-outside flow path traps contaminants inside the coreless element, preventing contamination of the clean filtrate. This high-flow design allows for the use of significantly fewer filters and smaller housings, which reduces capital, installation, and operating costs. The element is fitted with a standard ethylene propylene U-cup seal for reliable performance.
