$518.70
  • AB1HTPFR7WH4

Overview

Features

  • Media Material: Double Layer PTFE
  • O-ring/Seal/Gasket Material: Silicone Elastomer
  • Removal Rating: 0.2 µm
  • Nominal Length: 10 in
  • Maximum Differential Pressure: 5.4 bard @ < 40° C (104◦ F)
  • Filter Area: 8400 cm²
  • Integrity Testable: 100% bubble test

Description

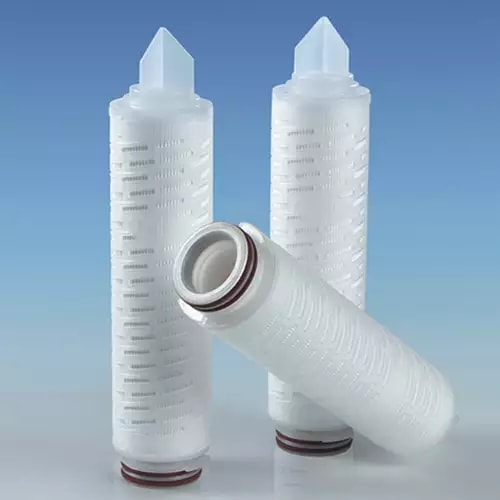

The AB1HTPFR7WH4 provides sterilizing-grade performance for high-temperature air and gas. A hydrophobic double-layer 0.2 µm PTFE membrane is pleated for a high area to maintain low differential pressure and steady flow. Oxidation-resistant materials and PPS support layers help extend service life on hot air and vent lines. The cartridge tolerates repeated steam-in-place cycles in the forward or reverse direction and supports Water Intrusion Test (WIT) integrity testing to simplify quality checks. Choose this 10-inch code-7 configuration for fermenter aeration, exhaust vents, and packaging air where validated retention and efficient operation are essential. Need more information? View all details for this Product Family!
