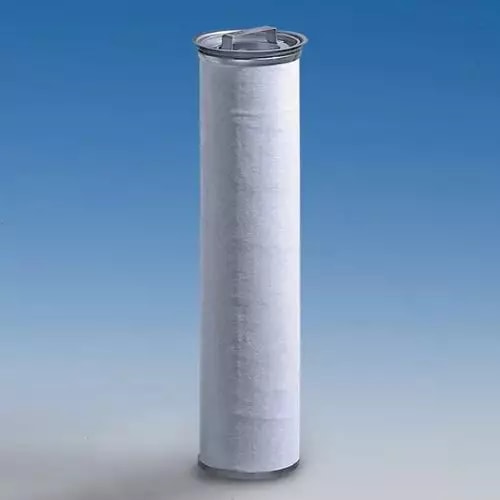

PhaseSep® Coalescers & Separators LCS4H1AH
Overview
Features
- Hardware Material: Epoxy Potted 304 Stainless Steel
- O-ring/Seal/Gasket Material: Fluoropolymer Elastomer O-Ring
- Nominal Outer Diameter: 3.75 in (9.53 cm)
- Nominal Length: 40 in (101.6 cm)
- Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
- Maximum Temperature: 60°C (140°F)
- Separation Level (LL Coalescer): ≤15ppm free water content
- Clean Differential Pressure: 0.17 bar (2 psid)
Description
The LCS4H1AH is a 40 in PhaseSep coalescer designed for high-volume liquid/liquid separation applications. This element uses a pleated fluoropolymer medium and a Teflon encapsulated fluoropolymer gasket. It effectively reduces liquid contaminants to less than 15 ppmv in a vertical housing setup.
