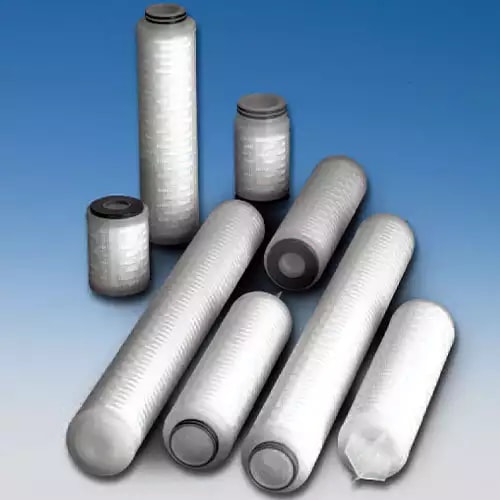

Poly-Fine® II Filter Cartridges HPT20UFM3417

$454.98
Part Number
  • HPT20UFM3417
Highlights...

Features

  • Media Material: Polypropylene
  • Hardware Material: Polypropylene
  • O-ring/Seal/Gasket Material: FEP encapsulated Viton
  • Removal Rating: 0.8µm
  • Removal Efficiency: nominal
  • Nominal Outer Diameter: 2.5 in 6.4 cm
  • Nominal Length: 20 in 508 mm
  • Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
  • Maximum Temperature: 60°C (140°F)
  • Dirt Holding Capacity: 0
  • Clean Differential Pressure: 0.17 bar (2 psid)
The HPT20UFM3417 is a 10-inch, 20 µm Poly-Fine II cartridge designed for reliable particle control. Made from all polypropylene for broad chemical compatibility, it features an M3 end configuration with EPDM gaskets. Its rigid cage and graded pore structure ensure long filter life with absolute retention performance.
