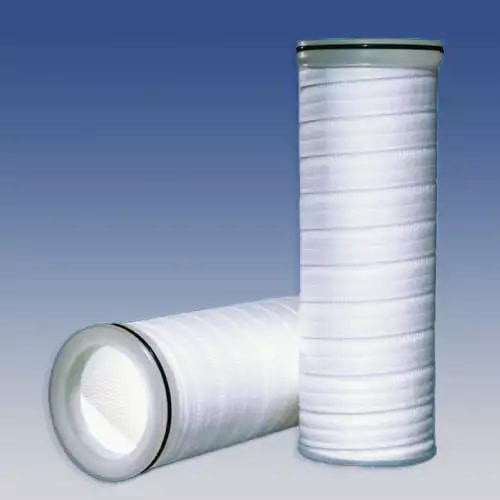

Ultipleat® High Flow Element, HFU620CAS010JUW
Overview
Features
- Media Material: Pleated Polypropylene / PES Membrane
- Hardware Material: Glass Filled Polypropylene
- O-ring/Seal/Gasket Material: Ethylene Propylene Rubber
- Removal Rating: 1 µm
- Removal Efficiency: 1
- Nominal Outer Diameter: 152 mm (6 in)
- Nominal Length: 508 mm (20 in)
- Maximum Differential Pressure: 3.45 bard (50 psid) (inside to out flow) @ 82 °C (180 °F)
Description
The HFU620CAS010JUW is a high-efficiency, 20-inch filter element specifically designed for the removal of critical particles in high-flow food and beverage applications. It features a composite filter medium of pleated polypropylene and polyethersulfone (PES) membrane, providing a 1 µm absolute removal rating. The large-diameter, coreless design and inside-to-outside flow path allow for high flow rates with fewer elements, reducing system size and operating costs. The synthetic construction and glass-filled polypropylene end caps ensure durability. This cartridge has an ethylene propylene U-cup seal, which is the standard for this high-purity composite media.
