Profile® Star Filter Cartridge, AB1A0107WH4
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Silicone Elastomer
- Removal Rating: 1 µm
- Removal Efficiency: 99.98 %
- Nominal Length: 254 mm (10 in)
- Configuration (SOE/DOE/Code7/Code3): SOE - single open end with fin end, 2 locking tabs and external 226 O-rings
- Maximum Differential Pressure: 5 bard (72 psid) @ < 50° C (122◦ F)
- Hot Water Sanitization: 80 °C (176 °F)
- Integrity Testable: No bubble test
Description

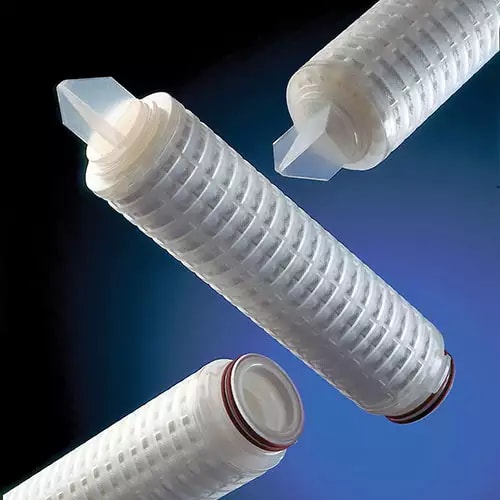

The Profile Star AB1A0107WH4 is a pleated depth filter designed for high particle removal efficiency in food and beverage applications. This 10-inch cartridge combines a graded-pore structure with a unique star-shaped pleat geometry, which increases the effective filtration area and service life. With a 1 µm removal rating at 99.98% efficiency, it is highly effective for fine clarification and gel removal. The all-polypropylene construction with a fixed-fiber matrix ensures a stable structure and consistent filtrate quality. This single-open-end element has a Code 7 adapter and silicone O-rings for a secure, sanitary fit.
