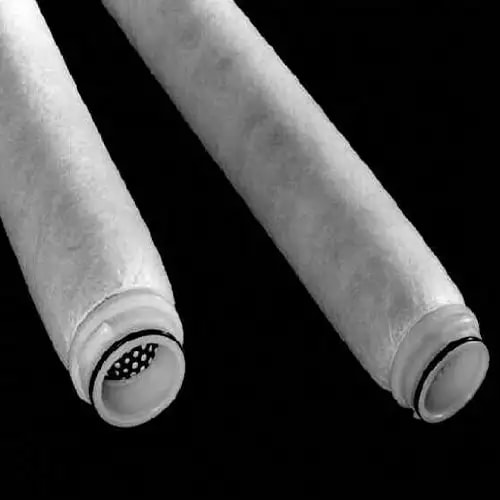

SepraSol™ Plus Coalescers & Separators CS604LGH13
Overview
Features
- Hardware Material: 304 stainless steel
- O-ring/Seal/Gasket Material: Nitrile
- Nominal Outer Diameter: 6 in (15.2 cm)
- Nominal Length: 40 in (101.6 cm)
- Maximum Temperature: 82 °C (180 °F)
- Aerosol Removal Rating (LG Coalescer): 99.999% at 0.3 µm per DOP test
- Solids Removal Rating (LG Coalescer): 99.7% for particles >0.3 µm per NaCl test
Description
Get long run length in a compact vessel. This six-by-forty-inch SepraSol single open-ended coalescer uses a high-area pleated medium with polymer support and drainage layers and a stainless steel core to hold a low saturated differential pressure. The positive single O-ring seal makes changeouts quick and prevents bypass. A hydrophobic and oleophobic treatment lowers surface energy so liquid drains rapidly and re-entrainment is minimized. Use it to protect compressors, burners, desiccants, and membranes while improving unit uptime and cutting energy use.
