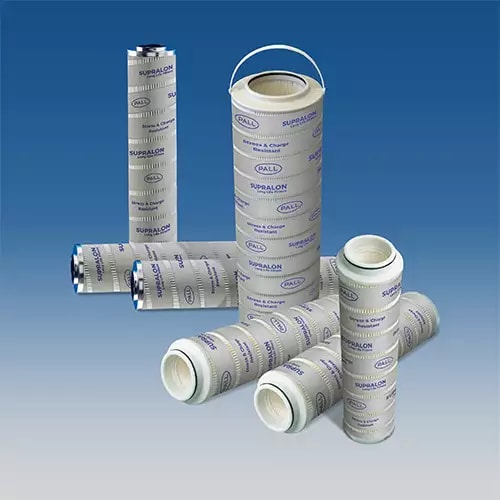

Supralon™ Lube & Hydraulic Elements HC2237FHS13Z

Name: Supralon™ Lube & Hydraulic Elements HC2237FHS13Z
Availability: BackOrder

We will be undergoing scheduled system maintenance from March 27 at 3:00 PM through April 1 at 9:00 AM. During this time, we will be unable to fulfill orders. Orders and quote requests remain available via our website or by contacting an application engineer. We apologize for any inconvenience and appreciate your continued patience.

Call for pricing

Part Number

HC2237FHS13Z

Highlights...

HC2237FHS13Z
By Pall Corporation
Call for availability

Features

Media Material: Glass Fiber
Hardware Material: Corrosion Protected Carbon Steel
O-ring/Seal/Gasket Material: Fluorocarbon
Removal Rating: 12 µm
Removal Efficiency: Beta 2000
Nominal Outer Diameter: 3.6 in 9.04 cm
Nominal Length: 13 in 33.02 cm
Dirt Holding Capacity: 0
Product Use: Lube and Hydraulic Oil Filtration

The 13-inch Supralon filter element HC2237FHS13Z delivers high flow and Beta 2000 filtration at a 12 µm rating. Its high-collapse design provides enhanced capacity and contaminant removal with fewer filter passes. The filter's proprietary media, with a heavy weight and fixed tapered pores, boosts dirt-holding capacity, while the spiral-wrapped pleats and improved support structure ensure full media utilization for a long life. An integrated anti-static outer wrap dissipates charge build-up, safeguarding the filter and fluid. This element offers a balance of high efficiency and large throughput, extending service intervals in hydraulic systems. Need more information? View all details for this Product Family!
