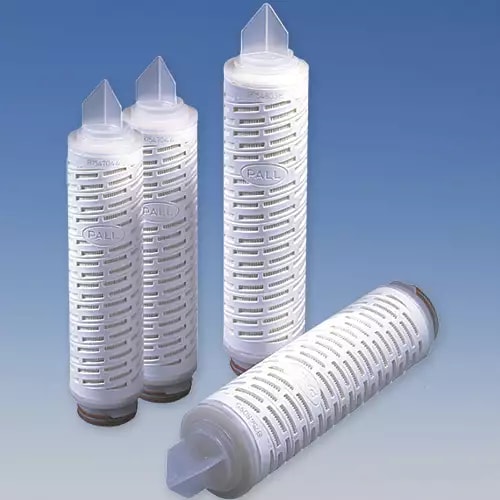

Fluorodyne® II Filter Cartridges, AB3FSD7WH4
Overview
Features
- Media Material: Hydrophilic polyvinylidene fluoride (PVDF)
- O-ring/Seal/Gasket Material: Silicone Elastomer
- Removal Rating: 0.2 µm
- Nominal Length: 30 in
- Maximum Differential Pressure: 5.3 bard @ < 50° C (122◦ F)
- Filter Area: 1.65 m²
- Hot Water Sanitization: 90 °C (122 °F) maximum operating
Description
Scale up without sacrificing control with this 30-inch Fluorodyne II cartridge. It couples a dual-layer 0.2 micron hydrophilic PVDF membrane with a Code 7 fin-end and external 226 O-rings to ensure robust sealing and dependable microbial retention in sanitary housings. The construction is engineered for repeated hot-water and steam-sanitization cycles, supporting predictable performance. The easy wetting of the media makes integrity testing straightforward, and the silicone O-rings provide a widely compatible sealing choice for food and beverage duties.
