Medallion™ Coalescers & Separators CS604LGT2H13

Name: Medallion™ Coalescers & Separators CS604LGT2H13
Availability: BackOrder

We will be undergoing scheduled system maintenance from March 27 at 3:00 PM through April 1 at 9:00 AM. During this time, we will be unable to fulfill orders. Orders and quote requests remain available via our website or by contacting an application engineer. We apologize for any inconvenience and appreciate your continued patience.

Call for pricing

Part Number

CS604LGT2H13

Highlights...

CS604LGT2H13
By Pall Corporation
Call for availability

Features

Hardware Material: 304 stainless steel
O-ring/Seal/Gasket Material: Nitrile
Nominal Outer Diameter: 6 in (15.2 cm)
Nominal Length: 40 in (101.6 cm)
Configuration (SOE/DOE/Code7/Code3): SOE
Maximum Differential Pressure: 2 bar (30 psid)
Maximum Temperature: 82 °C (180 °F)
Aerosol Removal Rating (LG Coalescer): 99.999% at 0.3 µm per DOP test
Solids Removal Rating (LG Coalescer): 99.7% for particles >0.3 µm per NaCl test

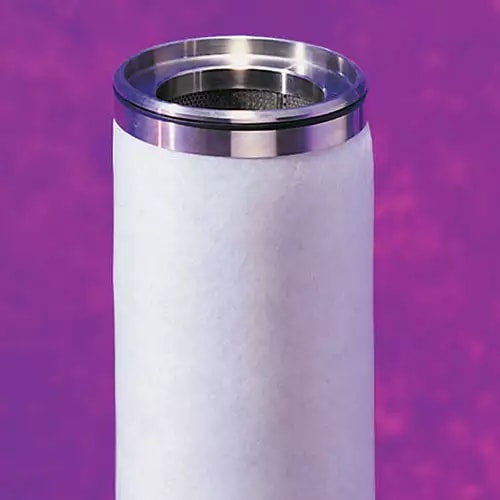

The CS604LGT2H13 is a Medallion HP SOE (Single Open Ended) coalescer engineered to cut liquid aerosols and solids to ultra-low levels. Its high-efficiency glass microfiber medium coalesces liquids at 99.999% at 0.3 micron and captures 99.7% of particles larger than 0.3 micron. The large-diameter geometry delivers high effective area, so fewer elements are needed to meet flowâ€"reducing vessel diameter, capital cost, and changeout frequency. With stainless steel end caps and a robust media pack, it supports reliable service in compressor and turbine protection, amine and glycol contactors, gas membrane and mole-sieve protection, pipeline and station service, and sales-gas polishing. Rated to 50 psid burst, the element is suitable to 180 C in dry gas and 60 C when water is present. As an A-style construction, it is compatible with most applications and provides a versatile fit for upstream, midstream, and downstream gas processes seeking stable operation and cleaner gas.
