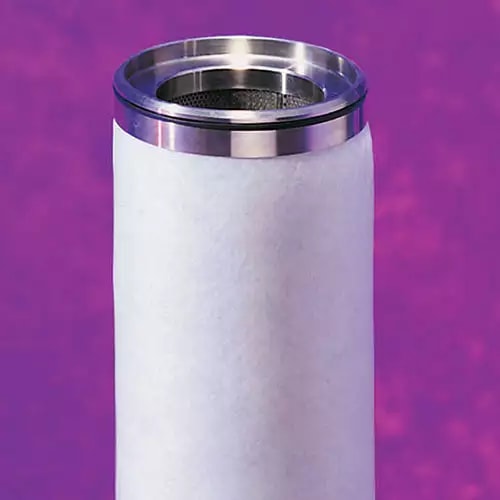

Medallion™ Coalescers & Separators CS604LGT2DH13

Name: Medallion™ Coalescers & Separators CS604LGT2DH13
Availability: BackOrder

We will be undergoing scheduled system maintenance from March 27 at 3:00 PM through April 1 at 9:00 AM. During this time, we will be unable to fulfill orders. Orders and quote requests remain available via our website or by contacting an application engineer. We apologize for any inconvenience and appreciate your continued patience.

Call for pricing

Part Number

CS604LGT2DH13

Highlights...

CS604LGT2DH13
By Pall Corporation
Call for availability

Features

Hardware Material: 304 stainless steel
O-ring/Seal/Gasket Material: Nitrile
Nominal Outer Diameter: 6 in (15.2 cm)
Nominal Length: 40 in (101.6 cm)
Configuration (SOE/DOE/Code7/Code3): DOE
Maximum Differential Pressure: 2 bar (30 psid)
Maximum Temperature: 82 °C (180 °F)
Aerosol Removal Rating (LG Coalescer): 99.999% at 0.3 µm per DOP test
Solids Removal Rating (LG Coalescer): 99.7% for particles >0.3 µm per NaCl test

The CS604LGT2DH13 Medallion HP coalescer couples a high-capacity, large-diameter element with a glass-microfiber medium to deliver best-in-class liquid and solids control. Liquids are removed at 99.999% at 0.3 micron, and solids at 99.7% above 0.3 micron, improving gas quality and reducing downstream maintenance. Its high effective filtration area lowers element count and changeout frequency, enabling smaller vessels and reduced installed cost. The A-style construction is broadly compatible for general gas processing. Typical duties include compressor inlet and outlet protection, turbine protection, amine and glycol contactor service, membrane and mole-sieve protection, and sales-gas polishing. Operating limits include a 50 psid burst pressure and maximum temperatures of 180 C in dry gas or 60 C with water present. The DOE (Double Open Ended) connection offers straightforward installation where double-open-ended housings are specified. Use CS604LGT2DH13 to stabilize operations, cut liquid carry-over, and safeguard downstream equipment in new builds or retrofits.
