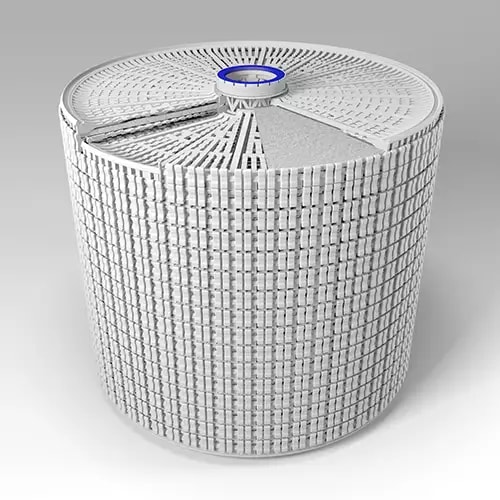

SUPRAdisc™ II Depth Filter Modules, 200X700C440SPW
Overview
Features
- Media Material: Kieselguhr, Perlite and Cellulose Fibers
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Silicone Elastomer
- Nominal Outer Diameter: 16 in
- Nominal Length: 10.7 in
- Maximum Differential Pressure: 21.75 psid
- Filter Area: 53.8 ft²
- Hot Water Sanitization: 185 °F
- Product Use: Beer, Coarse Filtration
Description
The SUPRAdisc II 7007899 is a high-capacity, 16-inch (410 mm) lenticular module for coarse filtration duties. It is built with K 700 grade filter sheets, which are well-suited for the clarification of wine, particle removal in fruit juice, and processing enzyme solutions. The advanced SUPRAdisc II construction, with its patented separator technology, ensures the full 5.0 m² filter area is utilized and protects the media from pressure shocks, allowing for backflush regeneration. This enclosed system offers a more hygienic and reliable alternative to traditional sheet filtration. This version is configured with a flat gasket adapter and silicone seals.
