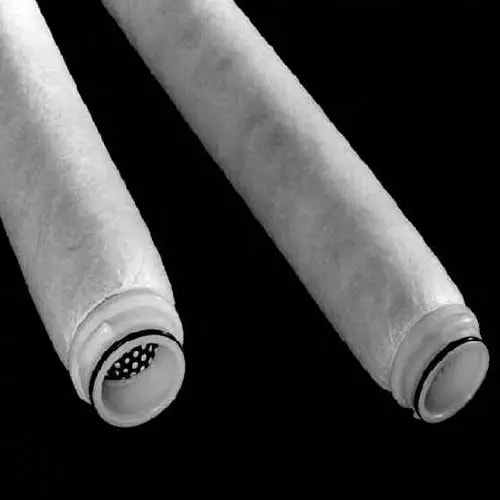

SepraSol™ Coalescers & Separators CC3LGB7H1

Name: SepraSol™ Coalescers & Separators CC3LGB7H1
Availability: BackOrder

We will be undergoing scheduled system maintenance from March 27 at 3:00 PM through April 1 at 9:00 AM. During this time, we will be unable to fulfill orders. Orders and quote requests remain available via our website or by contacting an application engineer. We apologize for any inconvenience and appreciate your continued patience.

Call for pricing

Part Number

CC3LGB7H1

Highlights...

CC3LGB7H1
By Pall Corporation
Call for availability

Features

Hardware Material: Polymeric
O-ring/Seal/Gasket Material: PTFE Encapsulated Viton
Nominal Outer Diameter: 2.75 in (7 cm)
Nominal Length: 30 in (76.2 cm)
Maximum Temperature: 82 °C (180 °F)
Aerosol Removal Rating (LG Coalescer): 99.999% at 0.3 µm per DOP test
Solids Removal Rating (LG Coalescer): 99.99% for particles >0.3 µm

Reduce foaming and amine losses. This SepraSol single open-ended element is configured for amine and ammonia service, combining code 7 sealing with a pleated, resin-bonded medium and polymer drainage layers to hold a low saturated differential pressure. The stainless steel core adds strength for high-flow operation. A hydrophobic and oleophobic treatment accelerates drainage and speeds recovery after slugs. Typical results include high efficiency removal at 0.3 micrometer and very low downstream liquid levels. Use it to protect treating towers, compressors, and downstream catalysts while improving uptime.
