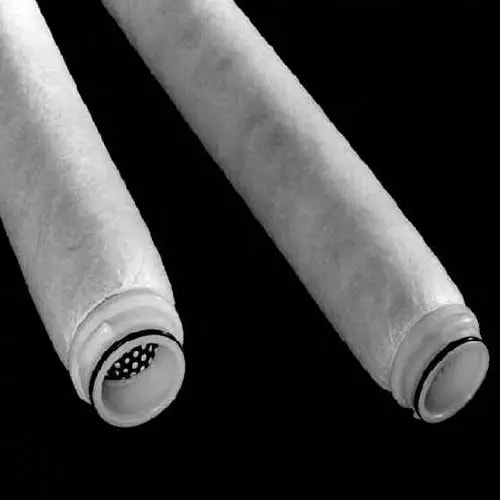

SepraSol™ Coalescers & Separators CC1LGA7H13

Name: SepraSol™ Coalescers & Separators CC1LGA7H13
Availability: BackOrder

We will be undergoing scheduled system maintenance from March 27 at 3:00 PM through April 1 at 9:00 AM. During this time, we will be unable to fulfill orders. Orders and quote requests remain available via our website or by contacting an application engineer. We apologize for any inconvenience and appreciate your continued patience.

Call for pricing

Part Number

CC1LGA7H13

Highlights...

CC1LGA7H13
By Pall Corporation
Call for availability

Features

Hardware Material: Polymeric
O-ring/Seal/Gasket Material: Nitrile
Nominal Outer Diameter: 2.75 in (7 cm)
Nominal Length: 10 in (25.4 cm)
Maximum Temperature: 82 °C (180 °F)
Aerosol Removal Rating (LG Coalescer): 99.999% at 0.3 µm per DOP test
Solids Removal Rating (LG Coalescer): 99.99% for particles >0.3 µm

Speed maintenance and tighten control of carryover. This 30-inch SepraSol single open-ended element uses a positive single O-ring seal for quick, repeatable changeouts and reliable sealing. A pleated resin-bonded medium with polymer support and drainage layers keeps the saturated differential pressure low while a stainless steel core adds strength. A hydrophobic and oleophobic treatment accelerates liquid drainage and improves recovery after slugs. Typical results include high efficiency removal of 0.3 micrometer solids and ultra-low downstream liquid levels. Apply this format to condition fuel gas and instrument gas, protect compressors and turbines, and reduce solvent losses in treating units.
