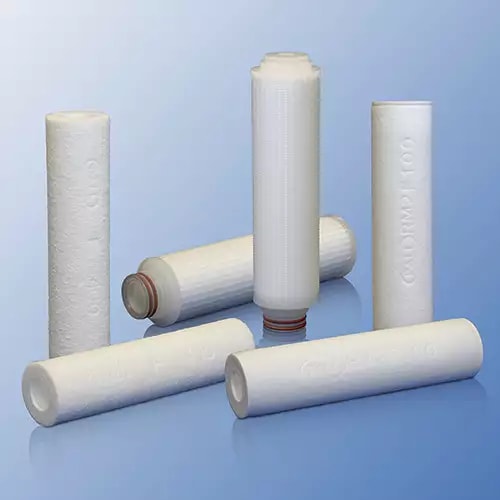

Profile® II Filter Cartridges, AB4Y0057WH4

Name: Profile® II Filter Cartridges, AB4Y0057WH4
Availability: BackOrder

We will be undergoing scheduled system maintenance from March 27 at 3:00 PM through April 1 at 9:00 AM. During this time, we will be unable to fulfill orders. Orders and quote requests remain available via our website or by contacting an application engineer. We apologize for any inconvenience and appreciate your continued patience.

Call for pricing

Part Number

AB4Y0057WH4

Highlights...

AB4Y0057WH4
By Pall Corporation
Call for availability

Features

Media Material: Polypropylene
Hardware Material: Polypropylene
O-ring/Seal/Gasket Material: Silicone Elastomer
Removal Rating: 0.5 µm
Removal Efficiency: 99.98 %
Nominal Length: 1016 mm (40 in)
Configuration (SOE/DOE/Code7/Code3): SOE - single open end with fin end, 2 locking tabs and external 226 O-rings
Maximum Differential Pressure: 4 bard (60 psid) @ < 30° C (86◦ F)
Hot Water Sanitization: 80 °C (176 °F)
Product Use: Air, Gas, and Vent Filtration

The Profile II AB4Y0057WH4 is a 40-inch depth filter offering maximum capacity for fine particle removal in high-volume applications. The 0.5 µm polypropylene medium, rated at 99.98% efficiency, has a graded-pore structure that provides excellent dirt-holding and prolongs the life of downstream final filters. Its fixed-fiber matrix ensures consistent and reliable filtration performance. This single-open-end cartridge features a Code 7 adapter (fin end with 226 O-rings) and silicone O-rings for a secure seal in sanitary housings. The construction allows for repeated hot water sanitization, making it an economical choice for large-scale operations. Need more information? View all details for this Product Family!
