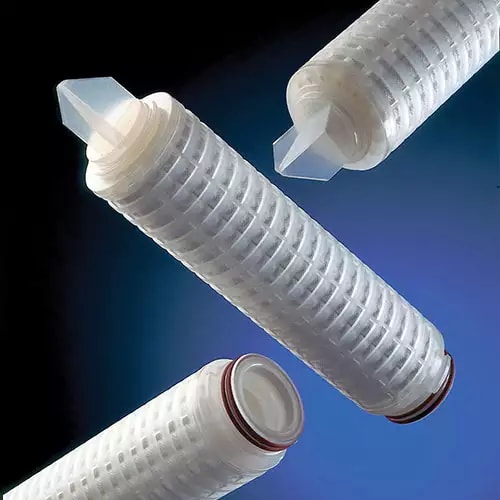

Profile® Star Filter Cartridge, AB3A0307WH4

Name: Profile® Star Filter Cartridge, AB3A0307WH4
Availability: BackOrder

We will be undergoing scheduled system maintenance from March 27 at 3:00 PM through April 1 at 9:00 AM. During this time, we will be unable to fulfill orders. Orders and quote requests remain available via our website or by contacting an application engineer. We apologize for any inconvenience and appreciate your continued patience.

Call for pricing

Part Number

AB3A0307WH4

Highlights...

AB3A0307WH4
By Pall Corporation
Call for availability

Features

Media Material: Polypropylene
Hardware Material: Polypropylene
O-ring/Seal/Gasket Material: Silicone Elastomer
Removal Rating: 3 µm
Removal Efficiency: 99.98 %
Nominal Length: 762 mm (30 in)
Configuration (SOE/DOE/Code7/Code3): SOE - single open end with fin end, 2 locking tabs and external 226 O-rings
Maximum Differential Pressure: 5 bard (72 psid) @ < 50° C (122◦ F)
Hot Water Sanitization: 80 °C (176 °F)
Integrity Testable: No bubble test

The Profile Star AB3A0307WH4 is a 30-inch pleated depth filter designed for high-efficiency particle removal. It combines a 3 µm polypropylene medium, rated at 99.98% efficiency, with a star-shaped pleat geometry to increase the effective filtration area and extend service life. The graded-pore structure is highly effective at removing both hard particles and soft contaminants like gels. The fixed-fiber matrix ensures a highly stable structure and consistent filtrate quality. This single-open-end element is configured with a Code 7 adapter and silicone O-rings for a reliable seal in sanitary housings. Need more information? View all details for this Product Family!
