SUPRAdisc™ II Depth Filter Modules, 200X100C440SPW

Name: SUPRAdisc™ II Depth Filter Modules, 200X100C440SPW
Availability: BackOrder

We will be undergoing scheduled system maintenance from March 27 at 3:00 PM through April 1 at 9:00 AM. During this time, we will be unable to fulfill orders. Orders and quote requests remain available via our website or by contacting an application engineer. We apologize for any inconvenience and appreciate your continued patience.

Call for pricing

Part Number

7007891

Highlights...

7007891
By Pall Corporation
Call for availability

Features

Media Material: Kieselguhr, Perlite and Cellulose Fibers
Hardware Material: Polypropylene
O-ring/Seal/Gasket Material: Silicone Elastomer
Nominal Outer Diameter: 16 in
Nominal Length: 10.7 in
Maximum Differential Pressure: 21.75 psid
Filter Area: 53.8 ft²
Hot Water Sanitization: 185 °F
Product Use: Beer, Clarifying Filtration

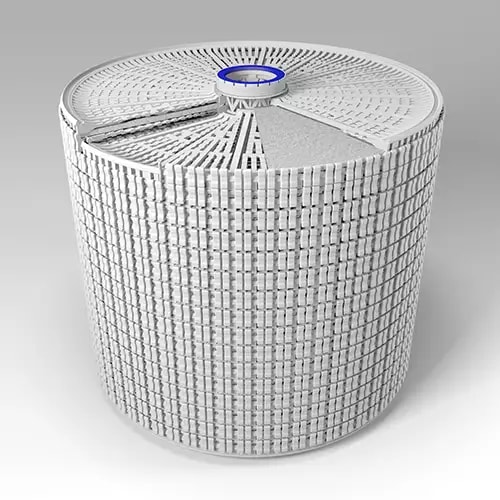

The SUPRAdisc II 7007891 is a high-capacity, 16-inch (410 mm) module ideal for polishing filtration in large-scale food and beverage applications. It features K 100 grade filter sheets, a versatile media for haze removal in apple juice, polishing sugar syrups, and reducing microbial load in beer. The robust SUPRAdisc II design, with its patented separator technology, ensures that the full 5.0 m² filter area is utilized efficiently and protects the media from damage during handling and operation. This design also allows the module to be backflushed, extending its service life and reducing overall filtration costs. This version is configured with a flat gasket adapter and silicone seals. Need more information? View all details for this Product Family!
