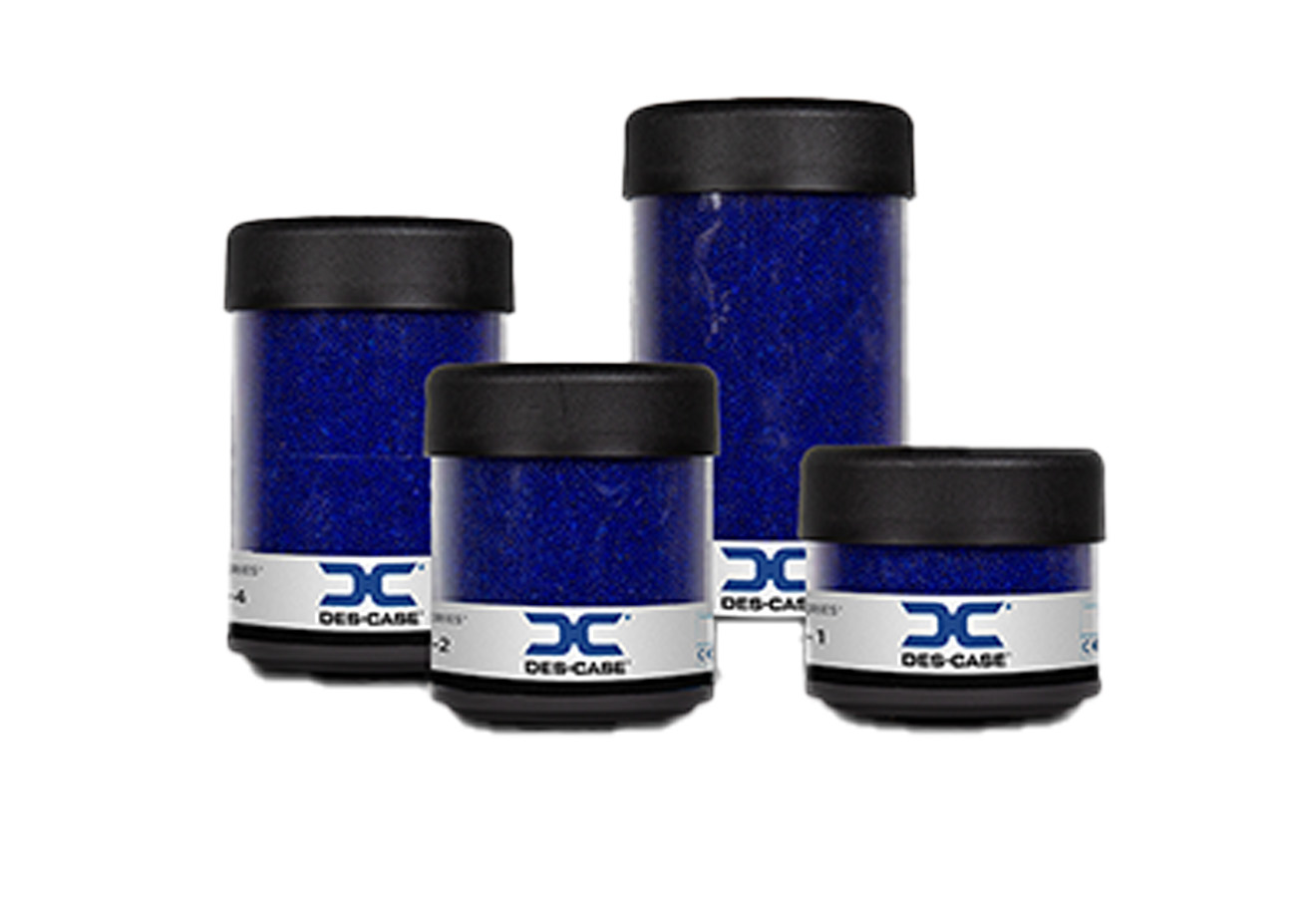

Des-Case Extended Series Disposable Breather

Check valve desiccant breather with integrated standpipe, silica gel and layered filter media, reduces oil mist.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at (314) 912-9756. We’re open Mo-Fri 8:30am to 5:00pm EST.
Request pricing below.
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • DC-EX-1
    • 7.7 fl oz (228ml) adsorption capacity
    • 27 cfm (765 lpm) max flow rate
    • 400 gal (1514 L) gearbox/storage tank max volume
    • 100 gal (379 L) hydraulic reservoir max
  • DC-VG-2
    • 14.1 fl oz (417 ml) adsorption capacity
    • 26 cfm (736 lmp) max flow rate
    • 600 gal (227 L) gearbox/storage tank max volume
    • 200 gal (757 L) hydraulic reservoir max
  • DC-VG-3
    • 20.5 fl oz (606 ml) adsorption capacity
    • 25 cfm (708 lpm) max flow rate
    • 800 gal (3028 L) gearbox/storage tank max volume
    • 300 gal (1136 L) hydraulic reservoir max
  • DC-VG-4
    • 27 fl oz (798 ml) adsorption capacity
    • 24 cfm (680 lpm) max flow rate
    • 1000 gal (3785 L) gearbox/storage tank max volume
    • 400 gal (1514 L) hydraulic reservoir max

The Des-Case Extended Series Disposable Breather combines the trusted materials and design of Des-Case Standard breathers with the check-valves of Des-Case VentGuard breathers, plus a new oil mist reducing feature, higher air flows and more than double the desiccant. The high airflow, long-lasting desiccant breather is ideal for tank farms and large or remote applications.

Applications

  • Totes
  • Transformers
  • Storage Tanks
  • Hydraulics

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

Des-Case Extended Series Breather Adapter
Des-Case Extended Series Breather Adapter

Steel breather adapter with 1 in NPT breather-side connection. Male-to-male, threaded flange, and vent valve equipment connections. For use with Des-Case Extended Series.

Select options for pricing
Part Number Price Available
DC-EX-1
Show Configuration
Call for pricing 8 in stock
DC-EX-2
Show Configuration
Call for pricing 2 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for Availability". Click here to select options
